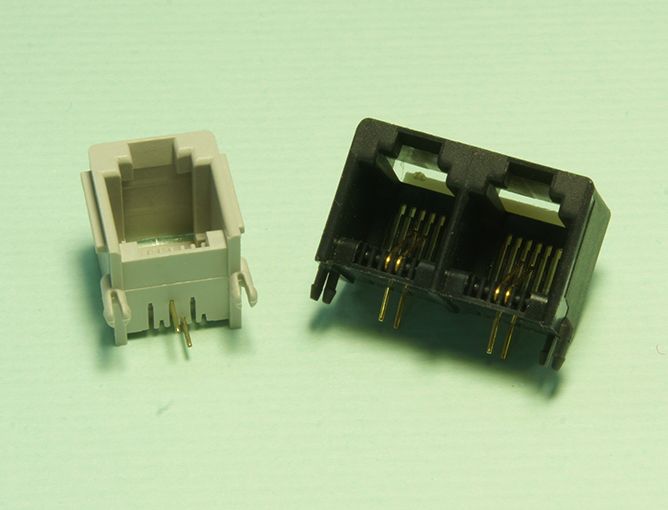

5521 Series Specifications

• Current Rating : 1.5 A

• Voltage Rating : 150V AC

• Operating Temperature : 0℃～＋70℃

• Storage Temperature : 0℃～＋70℃

• Contact Resistance : 30 Milliohms (MAX)

• Insulation Resistance : 500 Megohms (MIN)

• Withstanding Voltage : 2250V DC


item	Product Series	Image	Part Number	Description	Drawing

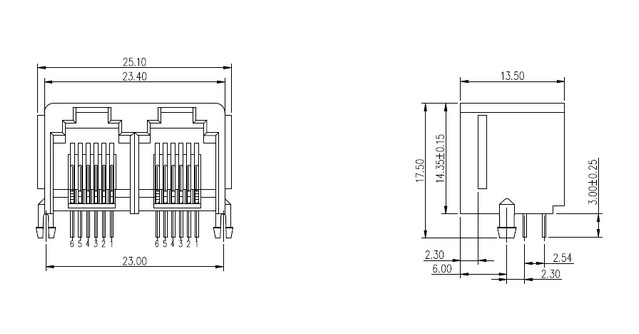

4-4	5521		552100-6*0*-2100-*X	Modular Jack, RJ11, 1*2 ports Contacts: 6P6C / 6P4C / 6P2C Tab up, with panel stops, through hole, side entry

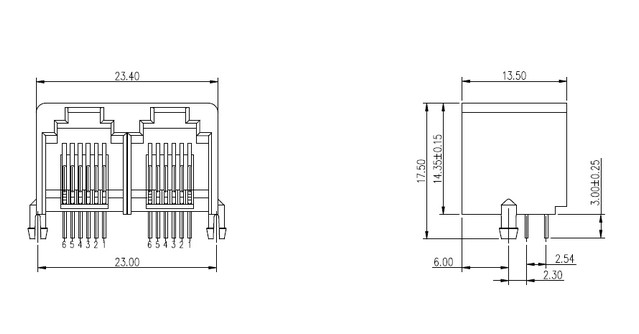

4-3	5521		552100-6*0*-2000-*X	Modular Jack, RJ11, 1*2 ports Contacts: 6P6C / 6P4C / 6P2C Tab up, without panel stops, through hole, side entry

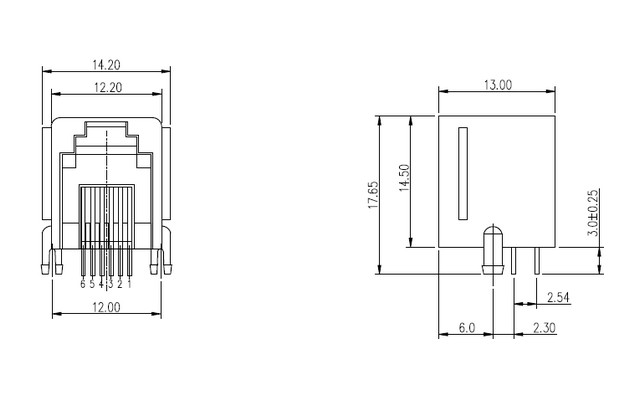

4-2	5521		552100-6*0*-1100-*X	Modular Jack, RJ11, 1*1 port Contacts: 6P6C / 6P4C / 6P2C Tab up, with panel stops, through hole, side entry

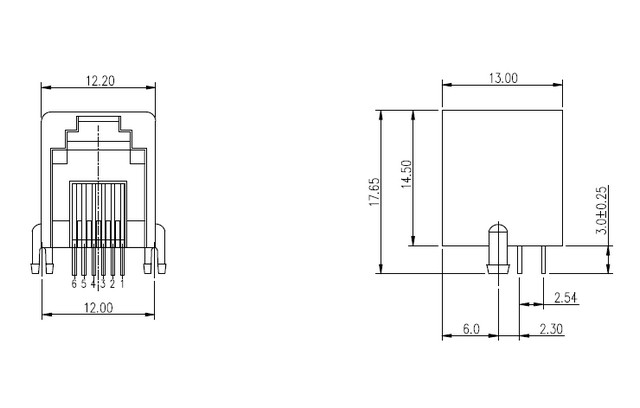

4-1	5521		552100-6*0*-1000-*X	Modular Jack, RJ11, 1*1 port Contacts: 6P6C / 6P4C / 6P2C Tab up, without panel stops, through hole, side entry
